Nitrile (NBR)Dosing Pump Teflon Diaphragms
- Diaphragm Material
- NBR+PTFE
- Outer Diameter
- 125 mm
- Pump Type
- Diaphragm Pump
₹1,500per piece · MOQ 50 Piece

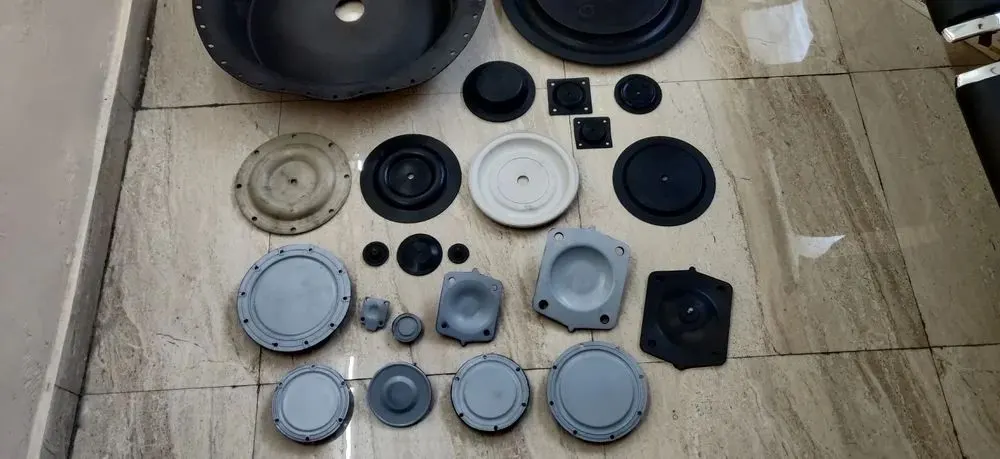

Rubber & PTFE Diaphragms
Rubber/PTFE Diaphragm
₹180
per piece, ex-works Nashik
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Color
- Black
- Application
- Machinery
- Shape
- circular
Material notes
PTFE / Teflon
−200 °C to +260 °C
Not an elastomer but a fluoropolymer, used as a bonded facing over a rubber backing. It gives a chemically inert working face while the rubber underneath supplies the flex.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
