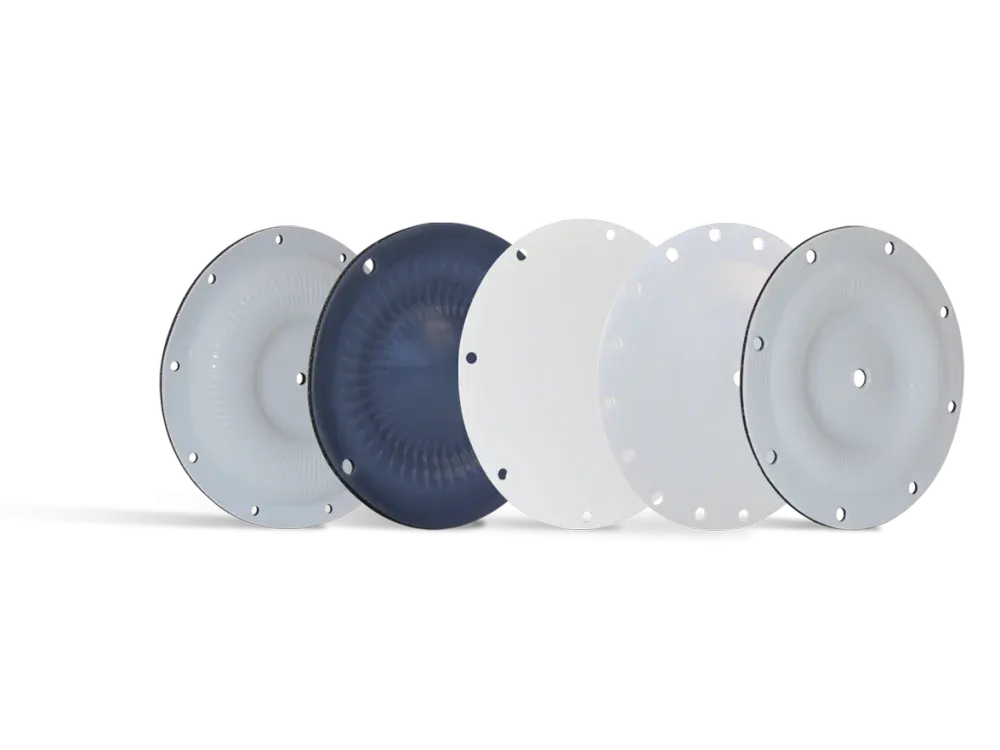

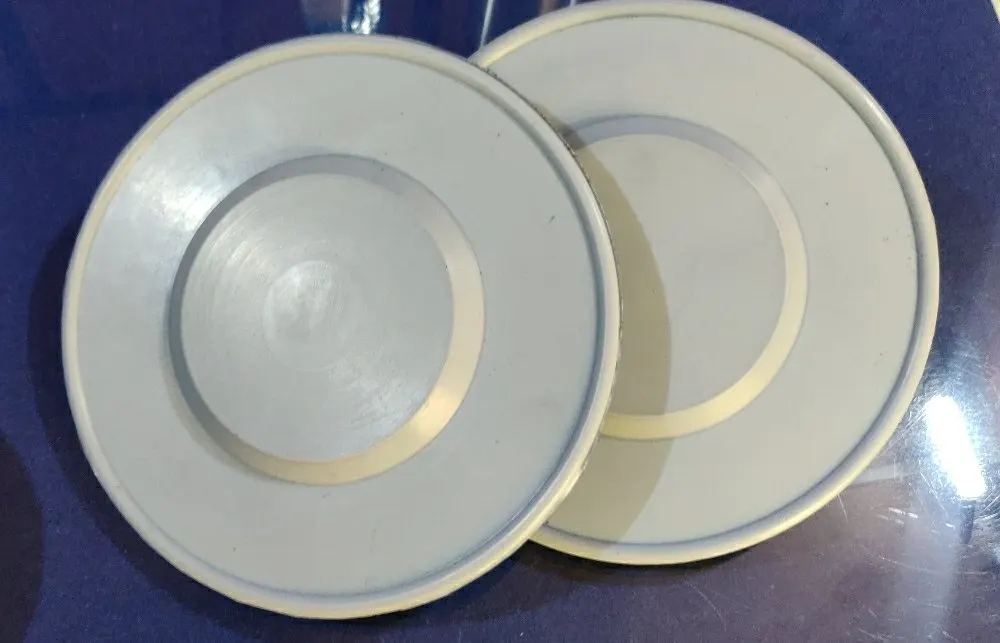

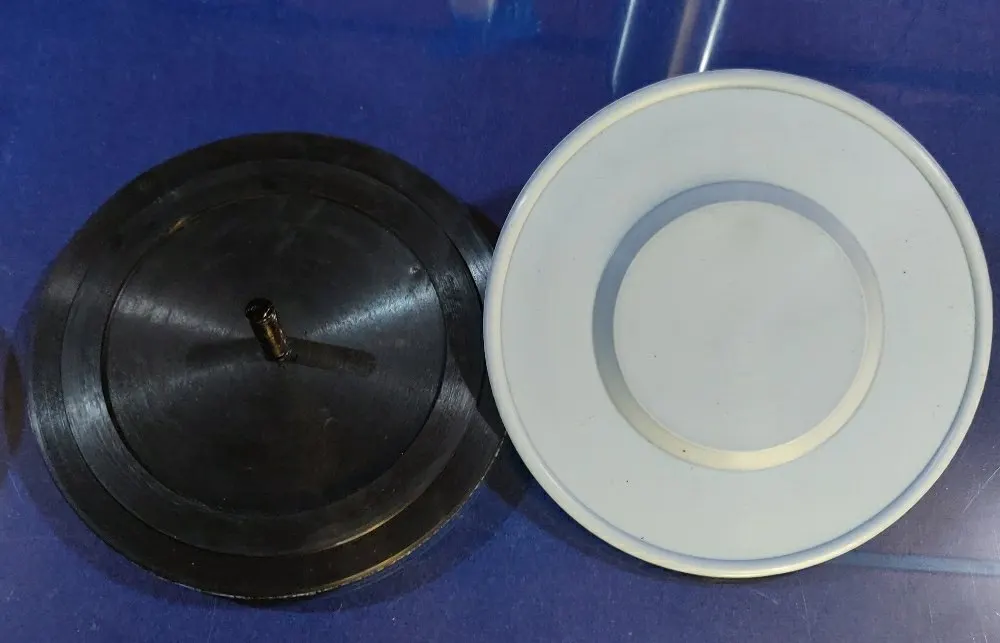

Dosing Pump Teflon Diaphragms

Name: Varsha Industries
Address: W-20/B, M.I.D.C. Ambad, Nashik, Maharashtra, 422010, IN
Telephone: +91 9823016609
Price range: ₹₹

₹1,500

per piece, ex-works Nashik

Min. order

50 Piece

These diaphragms are used for Industrial Purpose, Chemical Dosing Pumps and can be manufactured for various deflections in mm.

Enquire on WhatsApp +91 9823016609

Custom sizes and hardness to drawing
Compound tuned to your media and temperature
Dies cut in-house — fast first samples
Despatch by road across India

Download the product data sheet (PDF)

Technical specification

Standard catalogue build. Every dimension below can be changed to suit your assembly.

Diaphragm Material: NBR+PTFE
Outer Diameter: 125 mm
Pump Type: Diaphragm Pump
Usage/Application: Chemical Dosing
Working Pressure: 5 bar
Temperature Range: Up To 80 C
Reinforcement: Metal Insert
Model Name/Number: 17012M840
Application: Chemical
Color: White
Brand Compatibility: Other Brand
Design: Single Diaphragm
Country of Origin: Made in India
Shape: Circular

Material notes

Nitrile (NBR)

−30 °C to +110 °C

The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.

PTFE / Teflon

−200 °C to +260 °C

Not an elastomer but a fluoropolymer, used as a bonded facing over a rubber backing. It gives a chemically inert working face while the rubber underneath supplies the flex.
