Rubber & PTFE Diaphragms

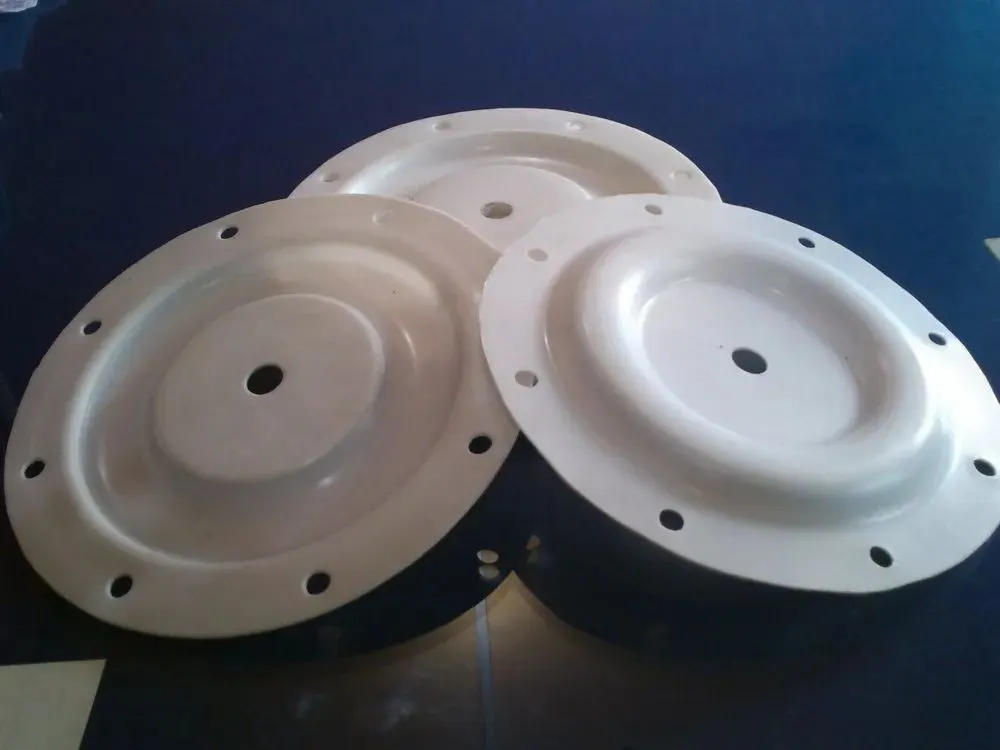

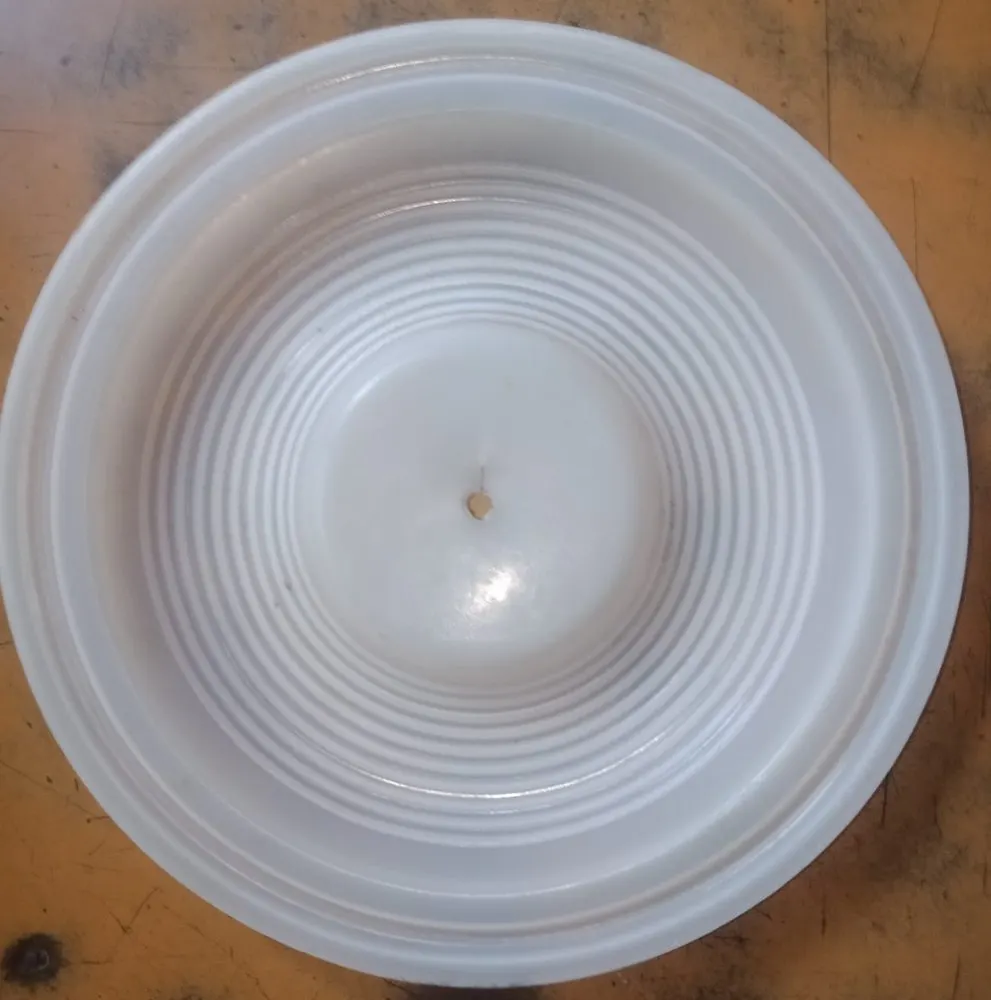

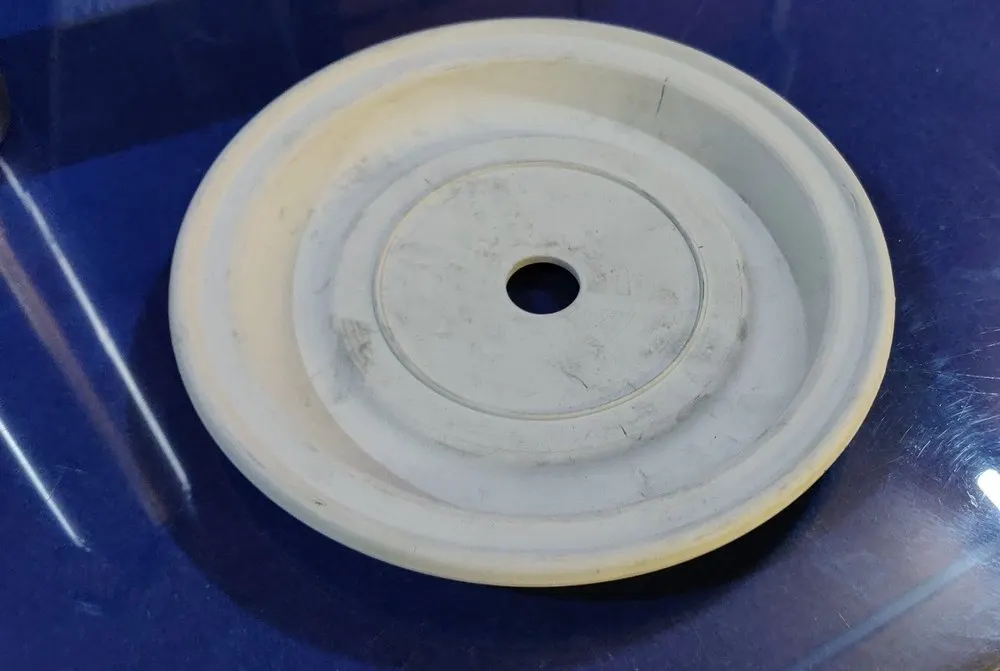

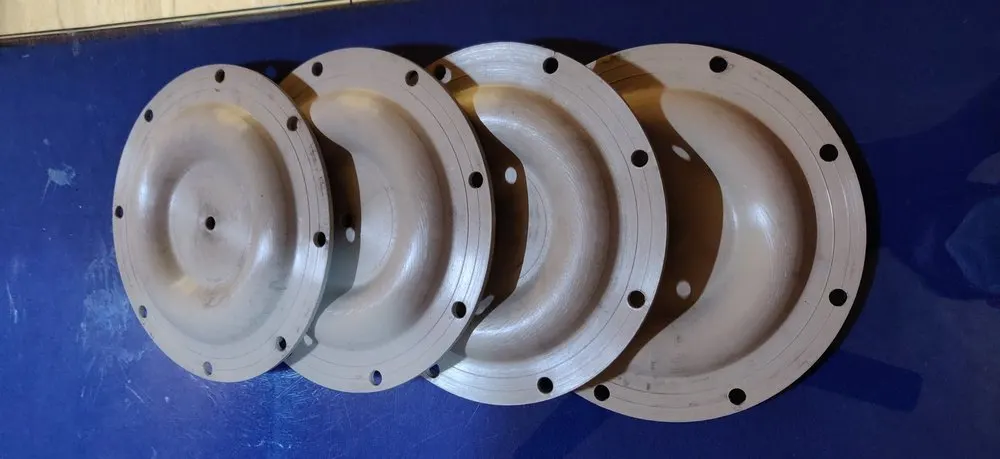

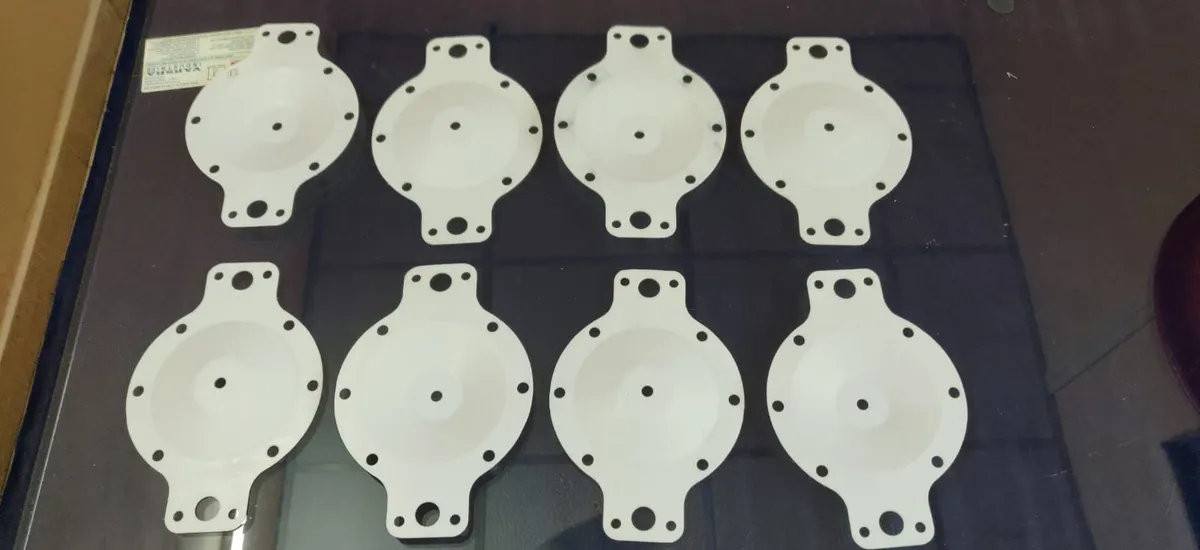

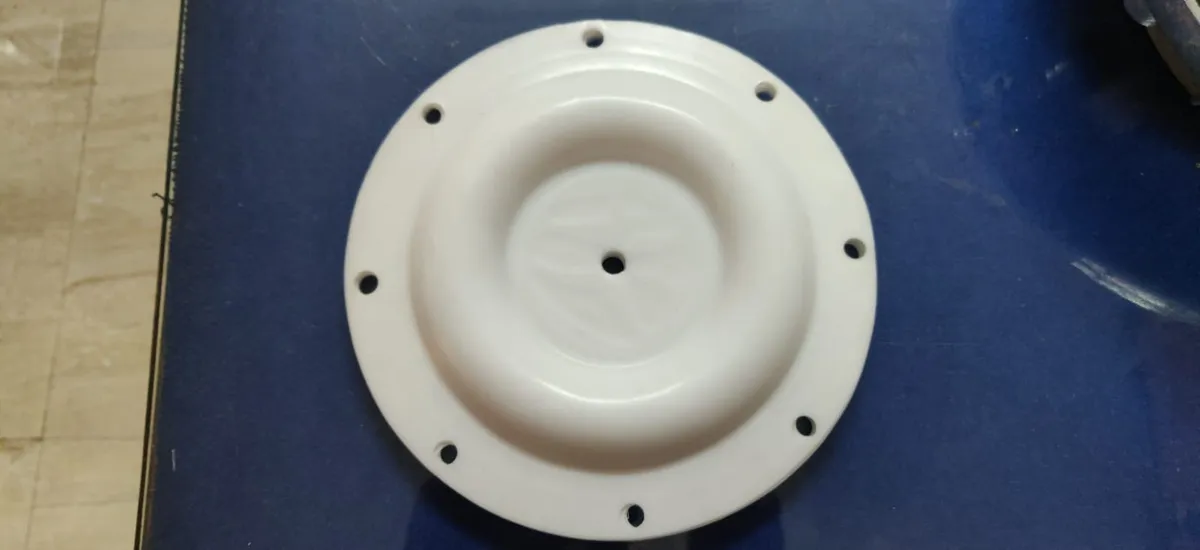

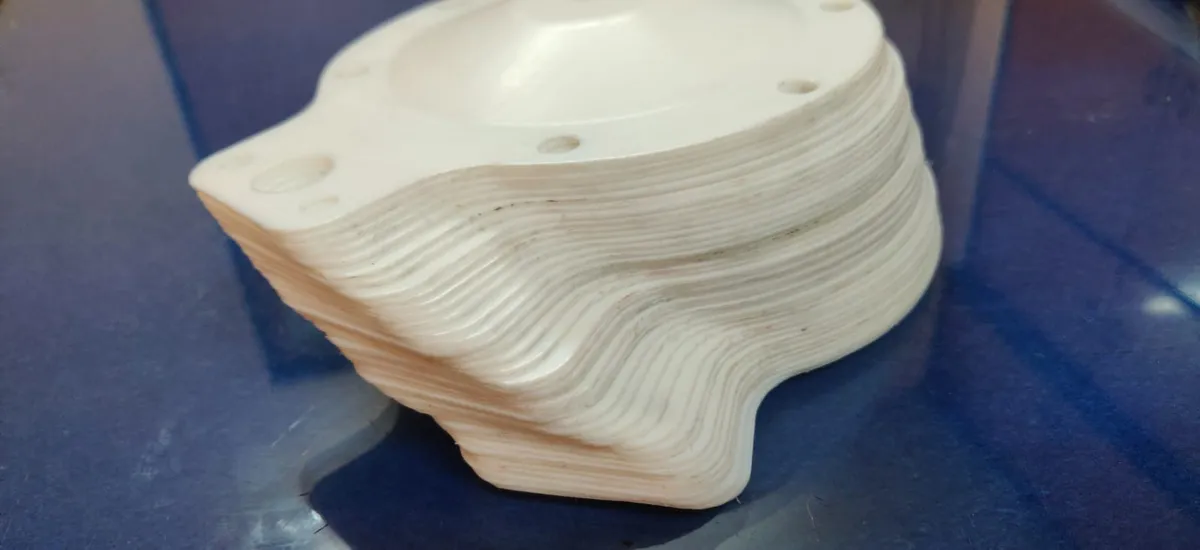

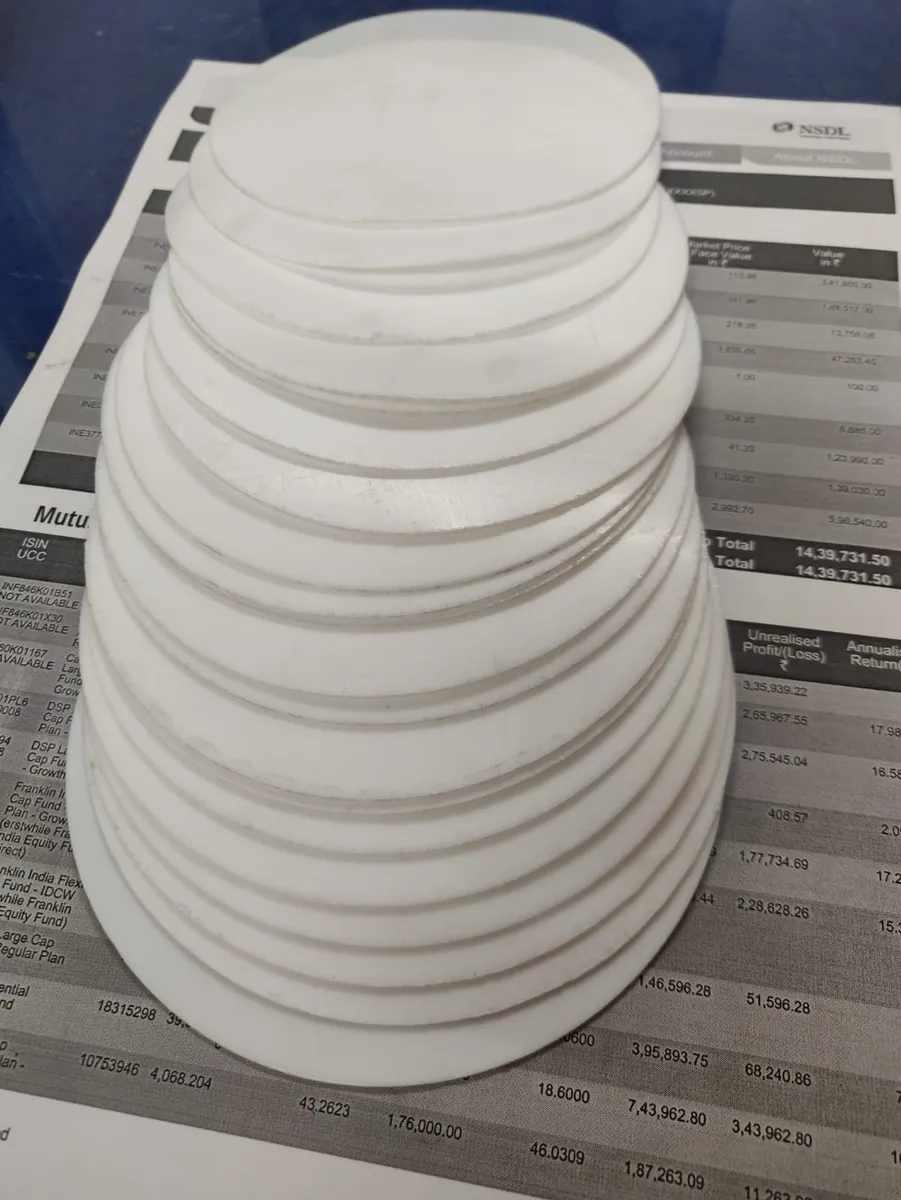

Ptfe Teflon Diaphragms
₹720
per piece, ex-works Nashik
Min. order
50 Piece
These diaphgrams are used in high temperature application in chemical industries. Deflection for these diaphgrams are in between 5 mm to 20 mm. Various sizes can also be manufactured
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Application Type
- Chemical Industry
- Diameter
- 100 mm to 350 mm
- Shape
- Round
- Brand
- VARSHA
- Color
- White
- Usage/Application
- Chemical Industry
- Temperature Withstand Capacity
- 500 to max 750 degree celsius
- Pressure
- 8 bar
- Temperature
- -60 - 180 degree c
- Surface
- Natural
- Grade
- Virgin
- Packaging Size
- 20 nos per bag
- Material
- PTFE
- Thickness
- 1mm to 5 mm
Material notes
PTFE / Teflon
−200 °C to +260 °C
Not an elastomer but a fluoropolymer, used as a bonded facing over a rubber backing. It gives a chemically inert working face while the rubber underneath supplies the flex.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
