Rubber Bonded Teflon Diaphragms

Name: Varsha Industries
Address: W-20/B, M.I.D.C. Ambad, Nashik, Maharashtra, 422010, IN
Telephone: +91 9823016609
Price range: ₹₹

₹540

per piece, ex-works Nashik

Min. order

30 Piece

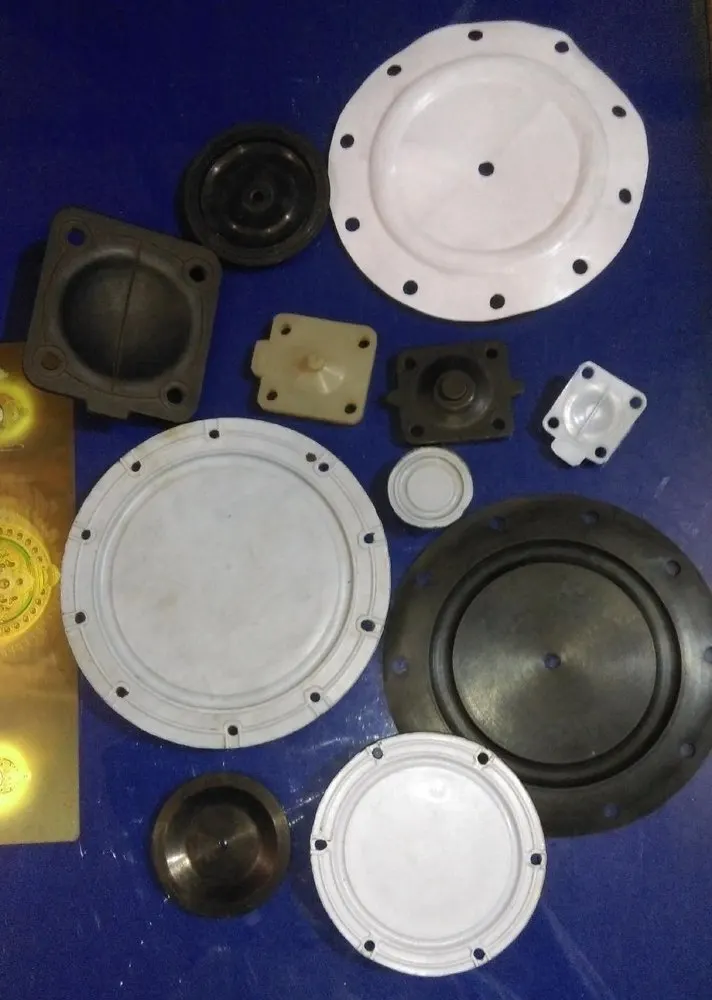

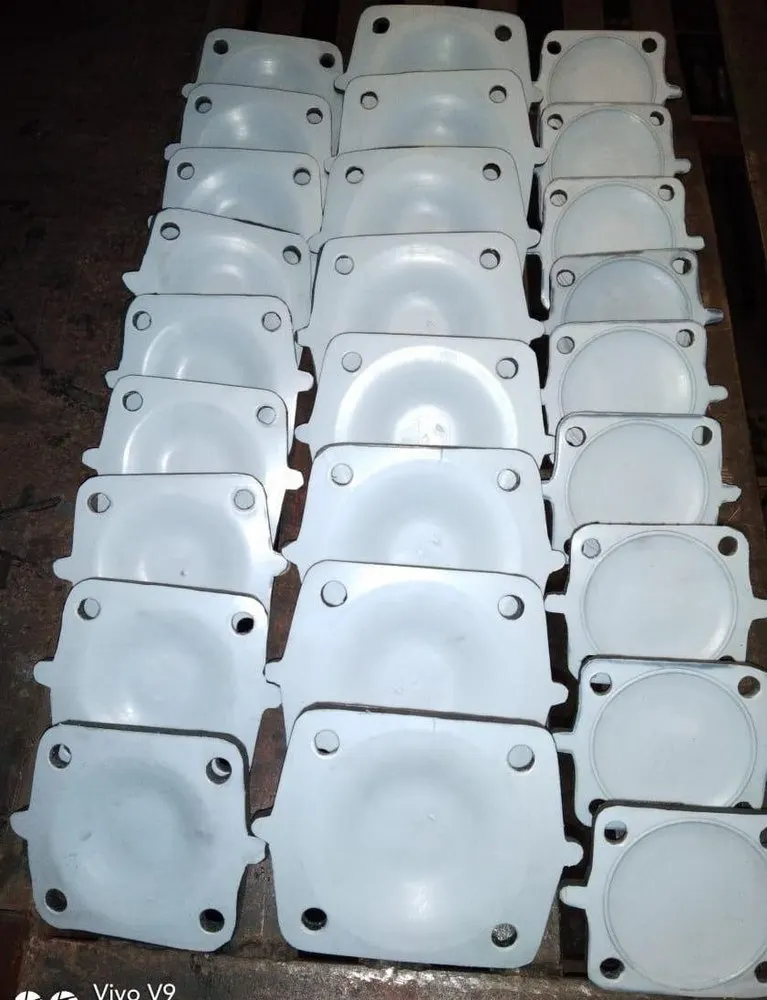

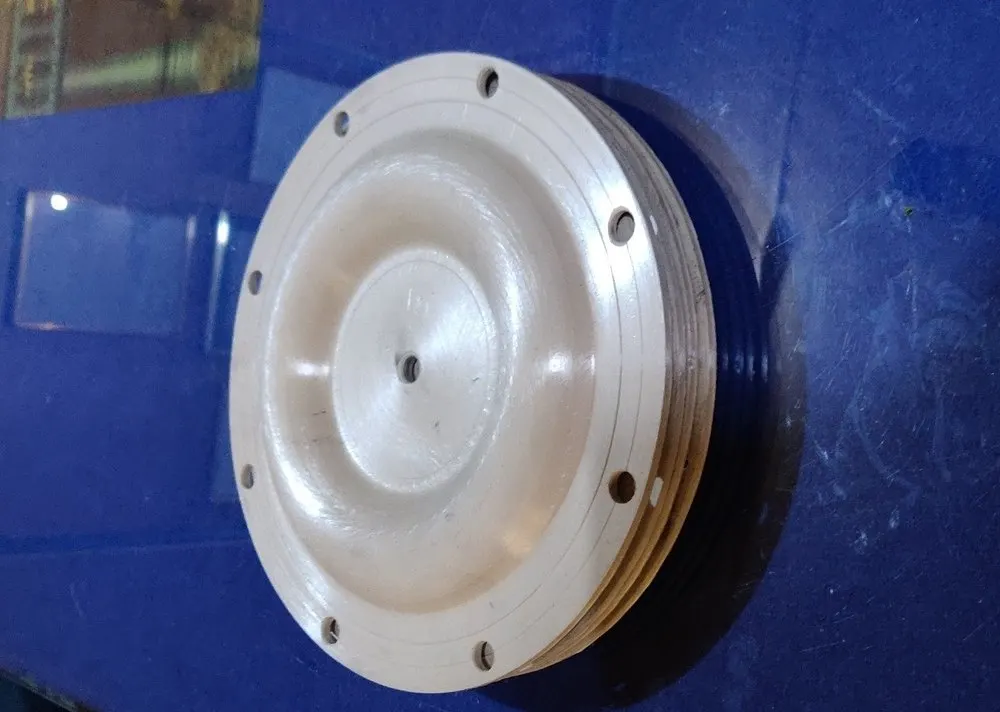

We are the manufacturers in any type of Teflon Rubber Diaphragms for Chemical Dosing Pumps, Industrial Valves etc. in various types of Rubber such as Natural, Neoprene, EPDM, Butyl & Nitrile. Our Range starts from 25mm to 550mm in Diameter in various shapes as per our Customers Requirements and Specifications. Our Diaphragms have been tested for various Chemicals and pressure upto 1.75kg/cm2. We can also Manufacture and Designe Diaphragms as per Customers Requirements.

Enquire on WhatsApp +91 9823016609

Custom sizes and hardness to drawing
Compound tuned to your media and temperature
Dies cut in-house — fast first samples
Despatch by road across India

Download the product data sheet (PDF)

Technical specification

Standard catalogue build. Every dimension below can be changed to suit your assembly.

Thickness: 5 mm
Inner Diameter: solid
Diameter: 50 to 300 max dia
Outer Diameter: 150 mm
Hardness: 50 degrees to 70 degrees
Shape: Round
Usage/Application: Industrial
Color: Black
Temperature Range: -50 - 150 degree c
Packaging Size: 10 pieces per packet
Working Pressure: 5 kg
Packaging Type: Polythene bag
Material: Neoprene Rubber, Nitrile Rubber

Material notes

Nitrile (NBR)

−30 °C to +110 °C

The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.

EPDM

−45 °C to +140 °C

The choice wherever water, steam, weather or ozone are involved. EPDM ages outdoors almost indefinitely and handles hot water and low-pressure steam that would destroy nitrile.

Neoprene (CR)

−35 °C to +120 °C

The balanced all-rounder. Moderate oil resistance combined with genuine weather resistance and inherent flame retardance — no other single compound covers that spread as cheaply.

PTFE / Teflon

−200 °C to +260 °C

Not an elastomer but a fluoropolymer, used as a bonded facing over a rubber backing. It gives a chemically inert working face while the rubber underneath supplies the flex.
