Neoprene (CR)Rubber To Metal Bonded Mounts
- Material
- Nr and Cr
- Shape
- Round and Square
- Packaging Type
- Box
₹150per number · MOQ 100 Number

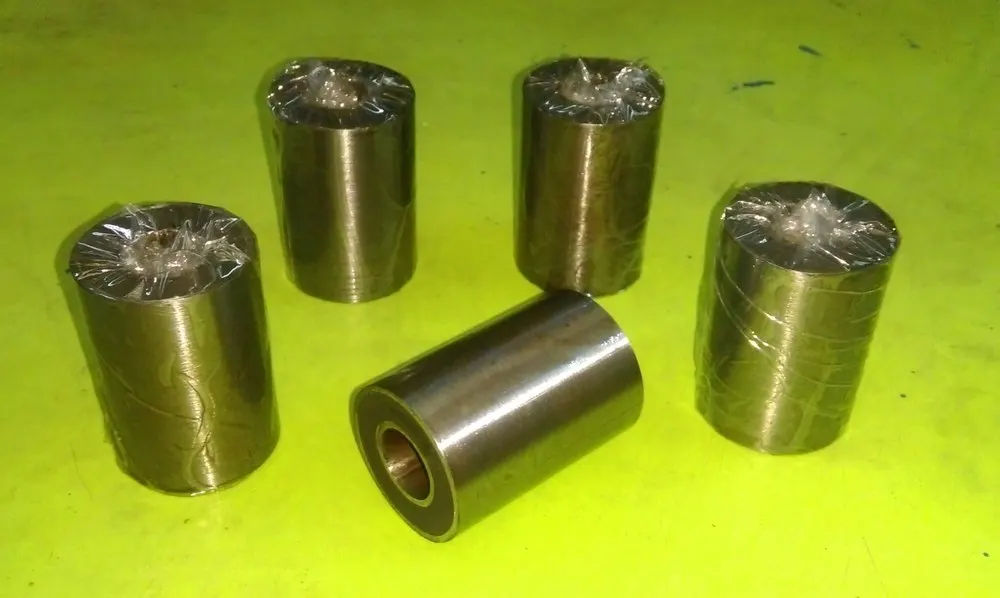

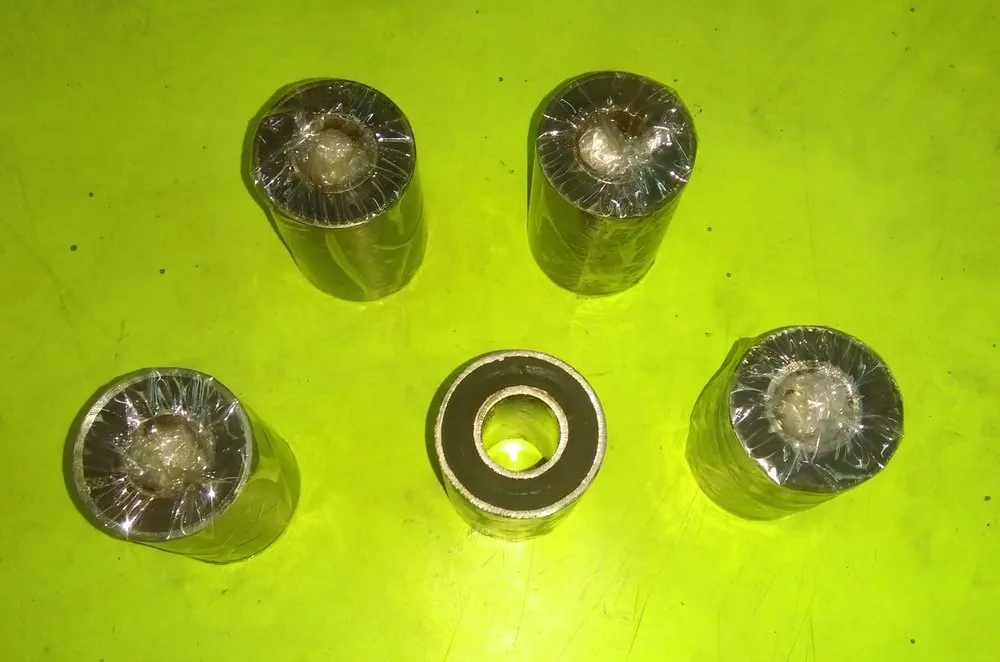

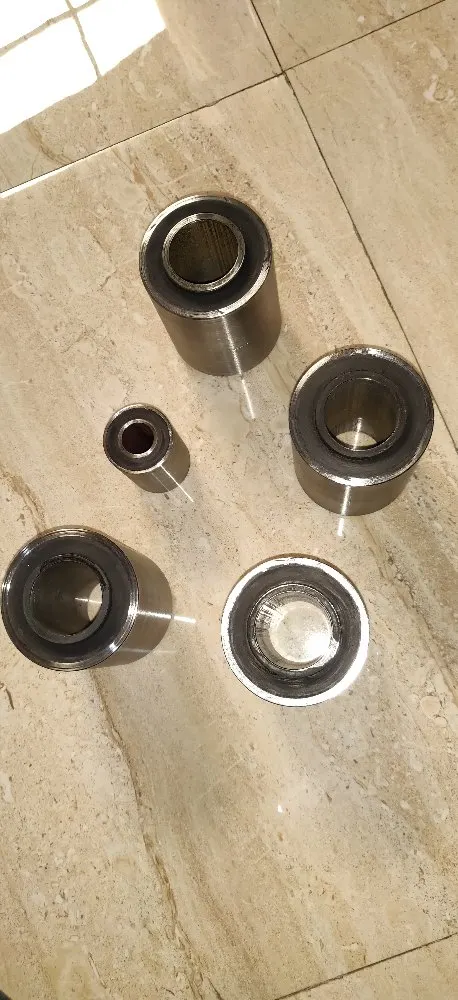

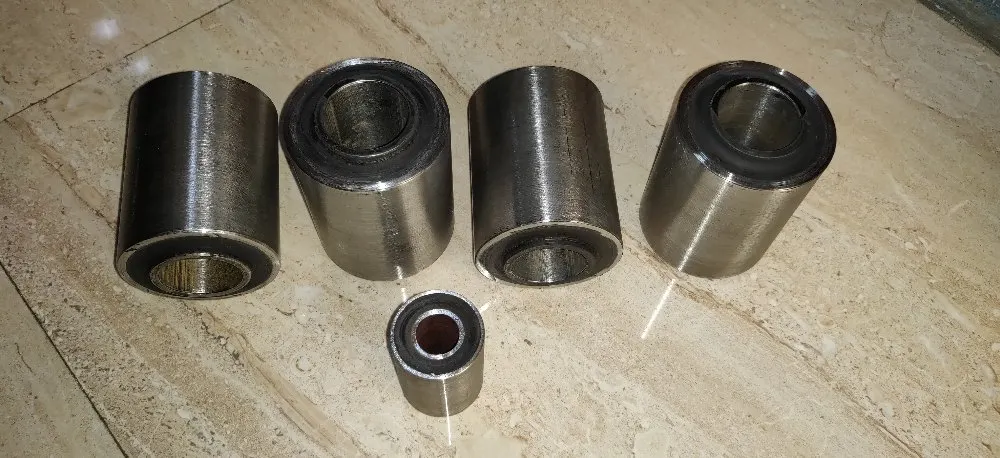

Rubber-to-Metal Bonded Components
Rubber to Metal Bonded
₹320
per piece, ex-works Nashik
Min. order
20 Piece
These products are made from high quality solutions and rubber that will last for many years. We are offering thses products as per customers requirement.
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Bonded Part Type
- Rubber To Metal
- Rubber Material
- Natural Rubber
- Metal Material
- Mild Steel
- Packaging Type
- Polybag
- Thickness
- 60 mm
- Hardness (Shore A)
- 60
- Application
- Machinery
- Load Capacity
- 51 To 100 kg
- Hardness
- 40-95 Deg. Shore A
- Shape
- Round
- Bonding Process
- Molded Bonded
- Temperature Range
- -20 To 80 C
- Country of Origin
- Made in India
- Color
- Black
- Material
- Neoprene/Nitrile/Natural/EPDM/Viton
Material notes
Nitrile (NBR)
−30 °C to +110 °C
The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.
EPDM
−45 °C to +140 °C
The choice wherever water, steam, weather or ozone are involved. EPDM ages outdoors almost indefinitely and handles hot water and low-pressure steam that would destroy nitrile.
Viton (FKM)
−20 °C to +230 °C
The premium fluoroelastomer for aggressive chemicals and sustained high heat. Specified where a nitrile part is failing early and downtime costs more than the seal.
Neoprene (CR)
−35 °C to +120 °C
The balanced all-rounder. Moderate oil resistance combined with genuine weather resistance and inherent flame retardance — no other single compound covers that spread as cheaply.
Natural Rubber
−50 °C to +80 °C
Unmatched resilience, tear strength and dynamic fatigue life. Still the correct choice for shock and vibration work wherever oil is not present.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
General Engineering
See components for this sector
