Nitrile (NBR)Pneumatic Rubber Bladder
- Application Ball
- Industrial
- Ball Size
- 300 x 300
- Bladder Material
- Rubber
₹1,200per piece · MOQ 20 Piece
Inflatable Bladders & Air Bags

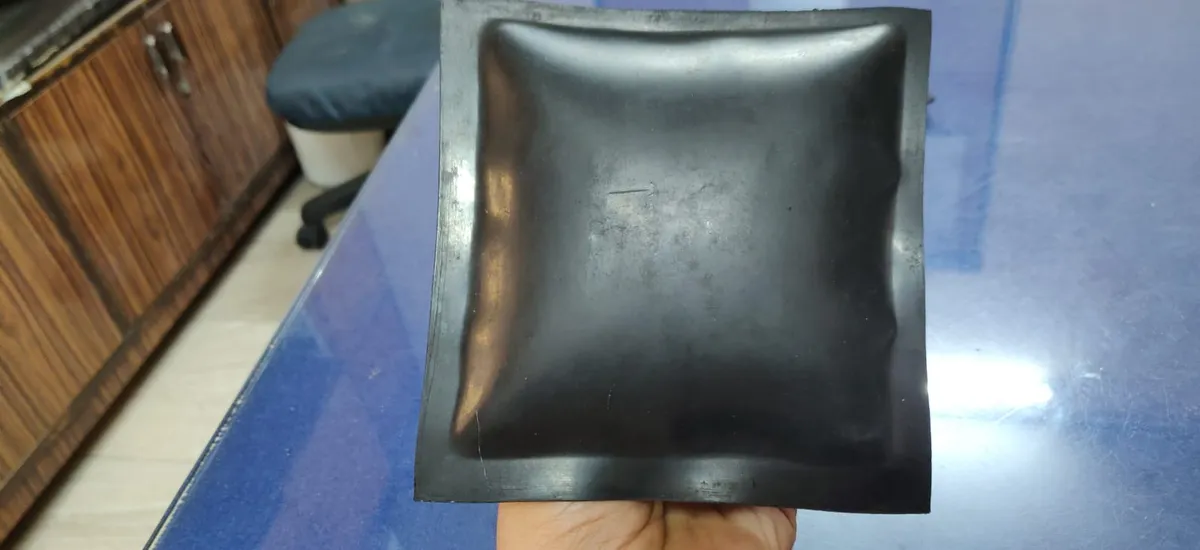

Air Inflated Square Bladder
₹3,000
per piece, ex-works Nashik
Min. order
10 Piece
Air Inflated Square Bladders are flexible moulded rubber air bags designed to expand and provide controlled cushioning, sealing, clamping, lifting or pressing force when inflated with compressed air. Manufactured from suitable rubber compounds such as NBR, Neoprene, EPDM or Silicone, depending on the application. These are mainly used for Brake Applications.
Typical applications
- Industrial lifting and pressing system
- Pneumatic clamping and gripping
- Conveyor and material-handling equipment
- Expansion/sealing applications
- Vibration and shock absorption
- Rubber bladder actuators
- Tyre and tube manufacturing equipment
- Custom pneumatic machinery
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Application
- Industrial
- Material
- NBR,NR,Neoprene etc.
- Process
- Compression Moulding
- Product Type
- Custom Part
- Hardness
- 50 Shore A
- Temperature Range
- -40 to 120°C
- Usage/Application
- For Lifting and Break applications
- Brand
- Varsha
- Size
- 305x305x18 thk.
- Color
- Black
- Feature
- Oil Resistant, Heat Resistant, Chemical Resistant
- Reinforcement
- Rubber to Metal
- Ambient Temperature Range
- 50deg C
- Min Temperature
- -10 deg C
Material notes
Nitrile (NBR)
−30 °C to +110 °C
The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.
EPDM
−45 °C to +140 °C
The choice wherever water, steam, weather or ozone are involved. EPDM ages outdoors almost indefinitely and handles hot water and low-pressure steam that would destroy nitrile.
Neoprene (CR)
−35 °C to +120 °C
The balanced all-rounder. Moderate oil resistance combined with genuine weather resistance and inherent flame retardance — no other single compound covers that spread as cheaply.
Natural Rubber
−50 °C to +80 °C
Unmatched resilience, tear strength and dynamic fatigue life. Still the correct choice for shock and vibration work wherever oil is not present.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
Chemical & Process
See components for this sector
Automotive & Engines
See components for this sector
General Engineering
See components for this sector
