Nitrile (NBR)Rubber Shaft Rollers
- Application
- Printing Machine
- Roller Diameter
- 75 mm
- Roller Length
- 500 mm
₹1,800per piece · MOQ 5 Piece
Rubber Rollers & Wheels
Rubber Bonded Wheel
₹320
per piece, ex-works Nashik
Min. order
50 Piece

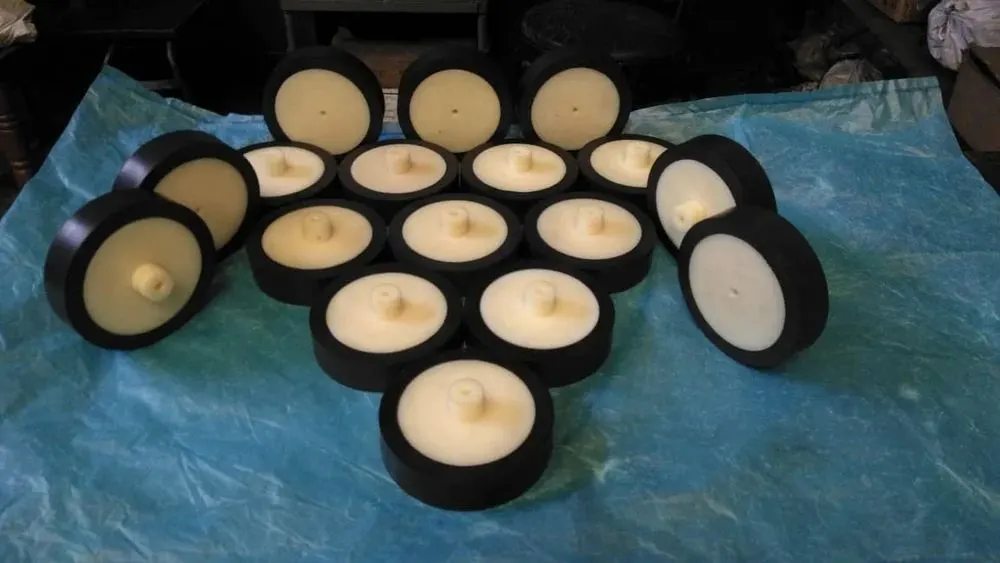

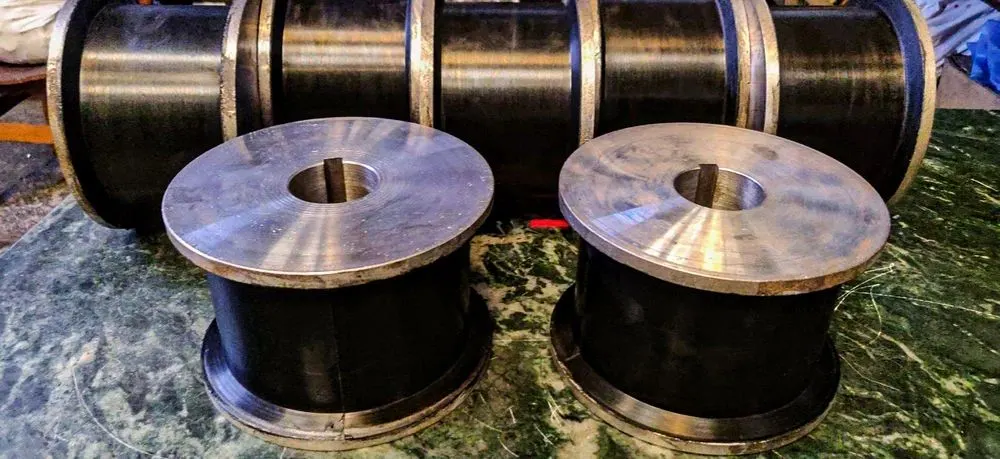

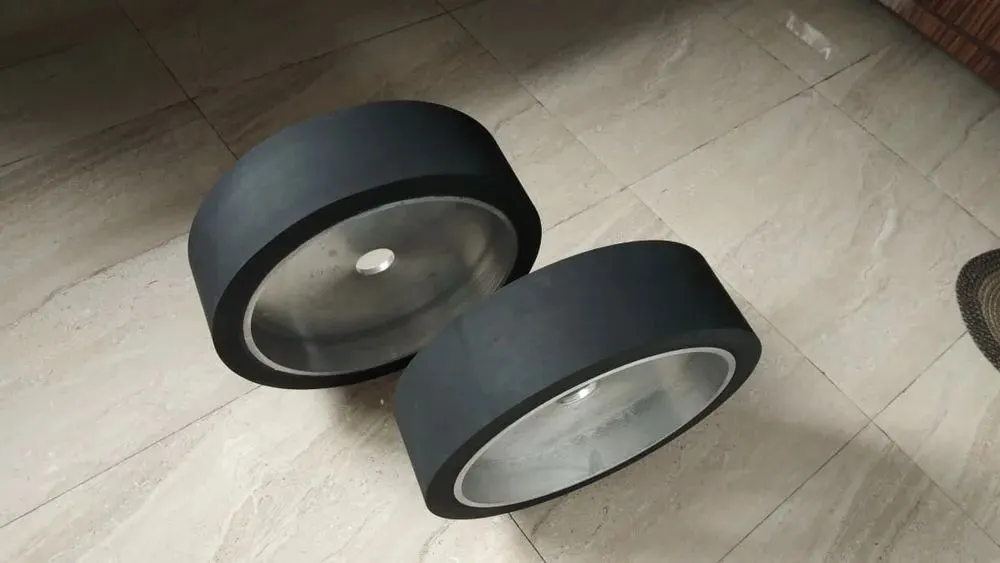

Rubber Bonded Aluminium Wheels are precision-manufactured wheels with a high-quality rubber layer permanently bonded to an aluminium core. They provide excellent shock absorption, vibration damping, traction, abrasion resistance and smooth operation. Available in NR, NBR, Neoprene, EPDM, XNBR or other rubber grades with customized diameter, width, hardness and aluminium core design. These wheels are mainly used for Industrial applications. They can be ranged from 4 inches diameter to 14 inches diameter with variable thicknesses. Metal casted wheels can also be manufactured according to customer requirement.
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Wheel Type
- Straight Wheel
- Wheel Diameter
- 125 mm
- Abrasive Type
- Aluminium Oxide
- Bond Type
- Rubber Bond
- Hardness Grade
- Medium
- Color
- Black
- Usage/Application
- Industrial
- Brand
- Varsha
- Bore Size
- 20 mm
- Packaging Type
- Polythene bag
- Application
- Grinding
- Surface Material
- Rubber
- Wheel Material
- Steel
- Weight
- Upto 1 kg
- Diameter
- Upto 100 mm
Material notes
Nitrile (NBR)
−30 °C to +110 °C
The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.
EPDM
−45 °C to +140 °C
The choice wherever water, steam, weather or ozone are involved. EPDM ages outdoors almost indefinitely and handles hot water and low-pressure steam that would destroy nitrile.
Neoprene (CR)
−35 °C to +120 °C
The balanced all-rounder. Moderate oil resistance combined with genuine weather resistance and inherent flame retardance — no other single compound covers that spread as cheaply.
Natural Rubber
−50 °C to +80 °C
Unmatched resilience, tear strength and dynamic fatigue life. Still the correct choice for shock and vibration work wherever oil is not present.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
