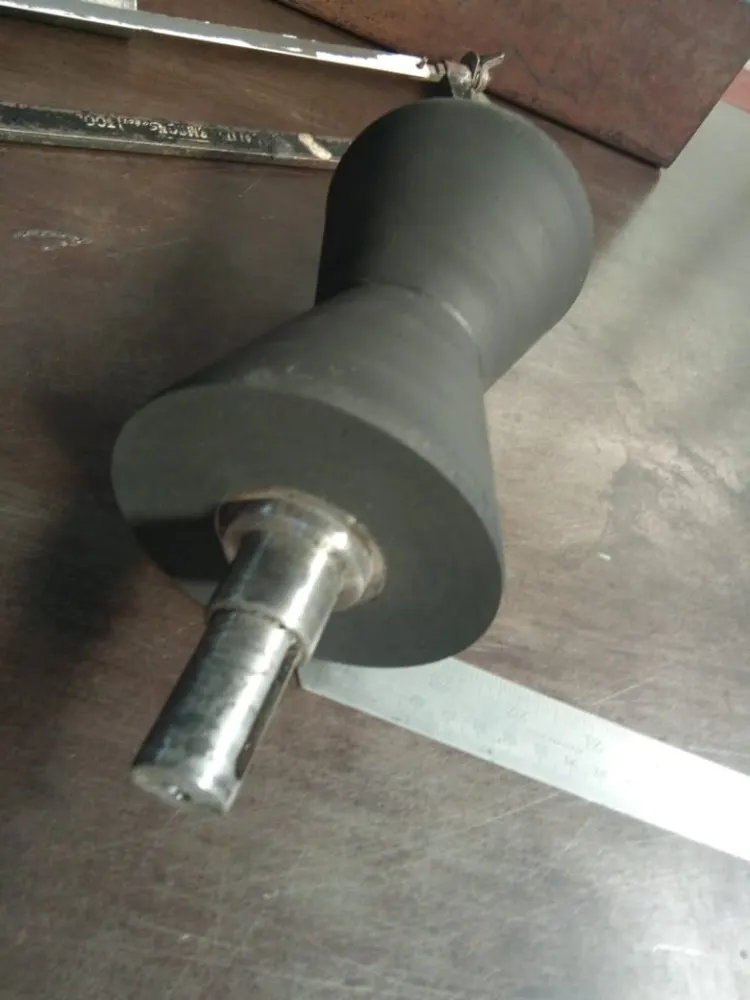

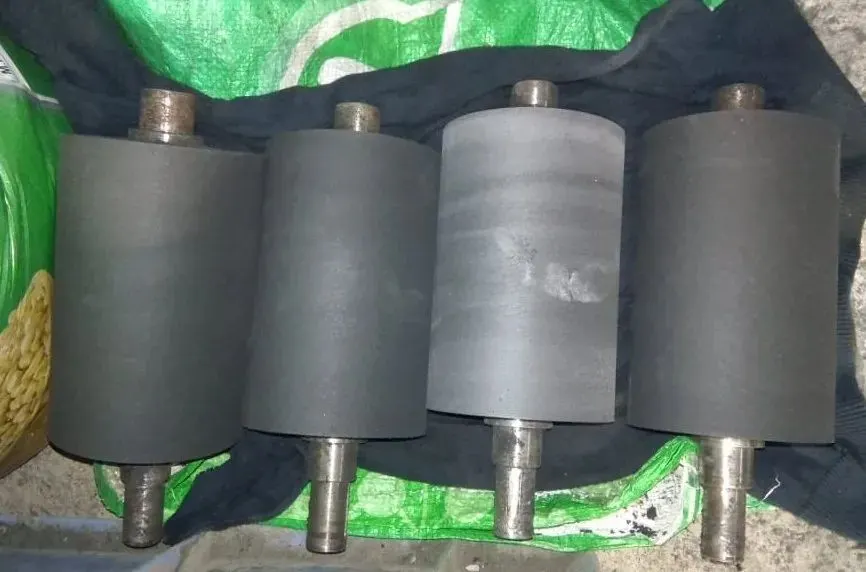

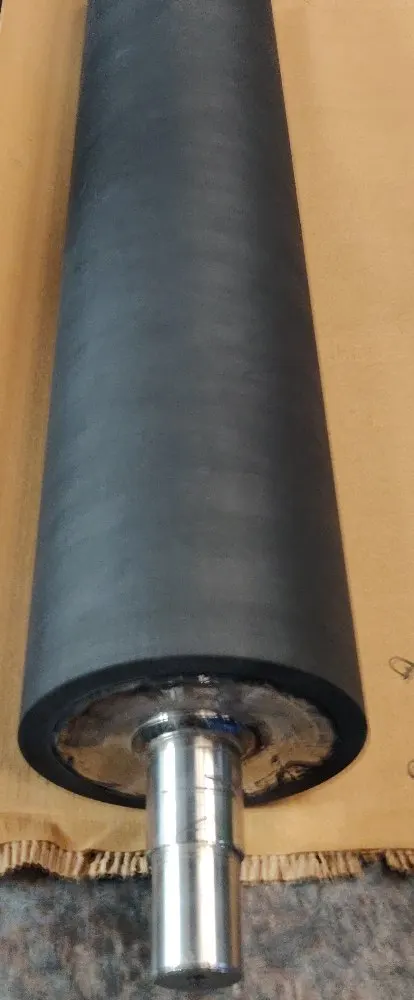

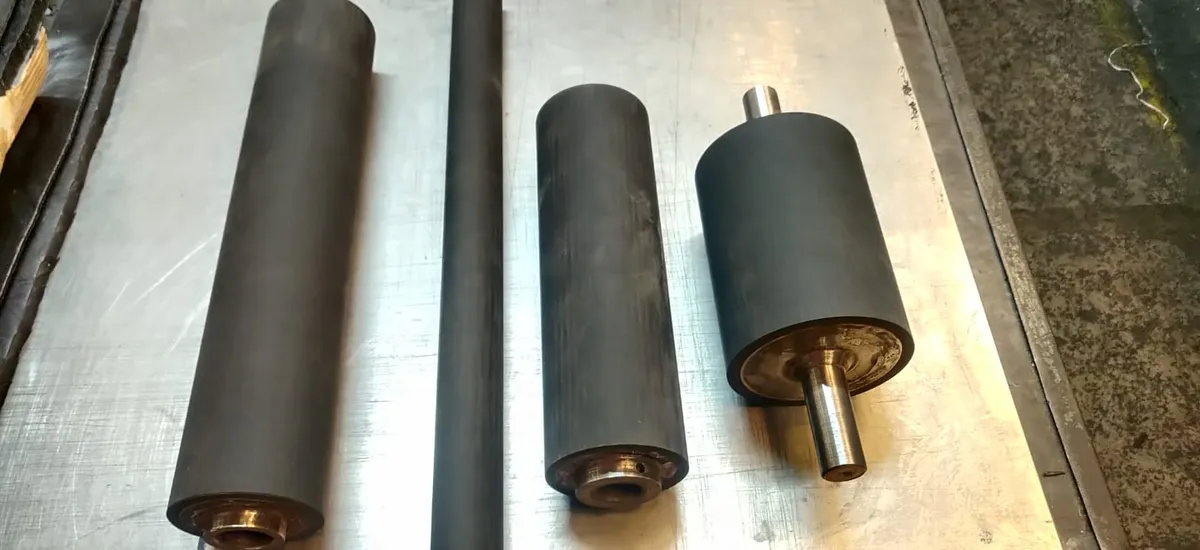

Rubber Shaft Rollers

Name: Varsha Industries
Address: W-20/B, M.I.D.C. Ambad, Nashik, Maharashtra, 422010, IN
Telephone: +91 9823016609
Price range: ₹₹

₹1,800

per piece, ex-works Nashik

Min. order

5 Piece

These are manufactured in EPDM and Nitrile Rubber. These are used in various industries such as textile, paper and printing industry. Various sizes can also be manufactured as per customer requirements.

Enquire on WhatsApp +91 9823016609

Custom sizes and hardness to drawing
Compound tuned to your media and temperature
Dies cut in-house — fast first samples
Despatch by road across India

Download the product data sheet (PDF)

Technical specification

Standard catalogue build. Every dimension below can be changed to suit your assembly.

Application: Printing Machine
Roller Diameter: 75 mm
Roller Length: 500 mm
Core Material: Mild Steel
Rubber Hardness: 70 Shore A
Oil Resistance: Hydraulic Oil
Color: black
Size: From Dia 100mm to 400mm x 1mtr Length
Maximum Load: 30 kg to 80 kg
Material: Nitrile and EPDM
Temperature Range: 50 to 120 degrees celsius

Material notes

Nitrile (NBR)

−30 °C to +110 °C

The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.

EPDM

−45 °C to +140 °C

The choice wherever water, steam, weather or ozone are involved. EPDM ages outdoors almost indefinitely and handles hot water and low-pressure steam that would destroy nitrile.
