Natural RubberHeavy Duty Anti Vibration Mounts
- Mount Type
- Pad
- Load Capacity
- 1000 kg
- Thread Size
- M16
₹1,500per piece · MOQ 20 Piece
Anti-Vibration Mounts & Isolators

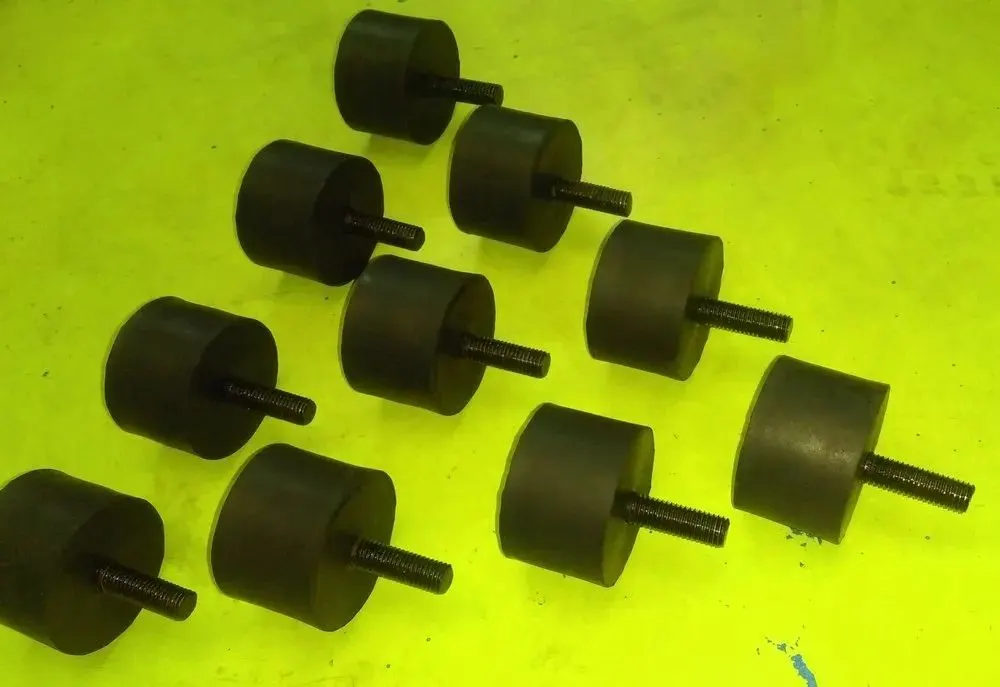

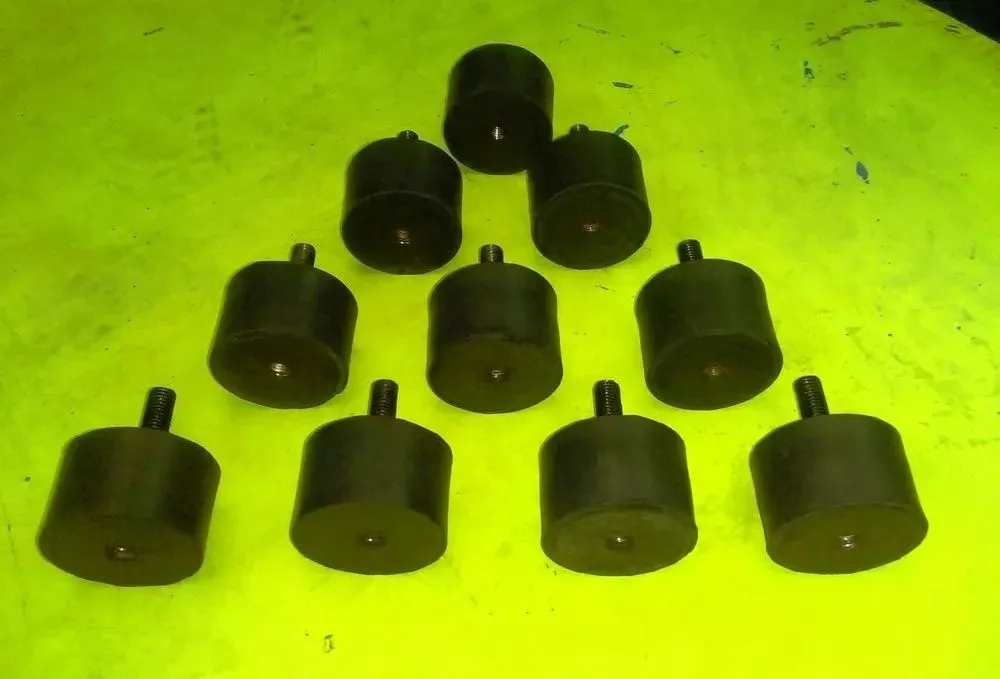

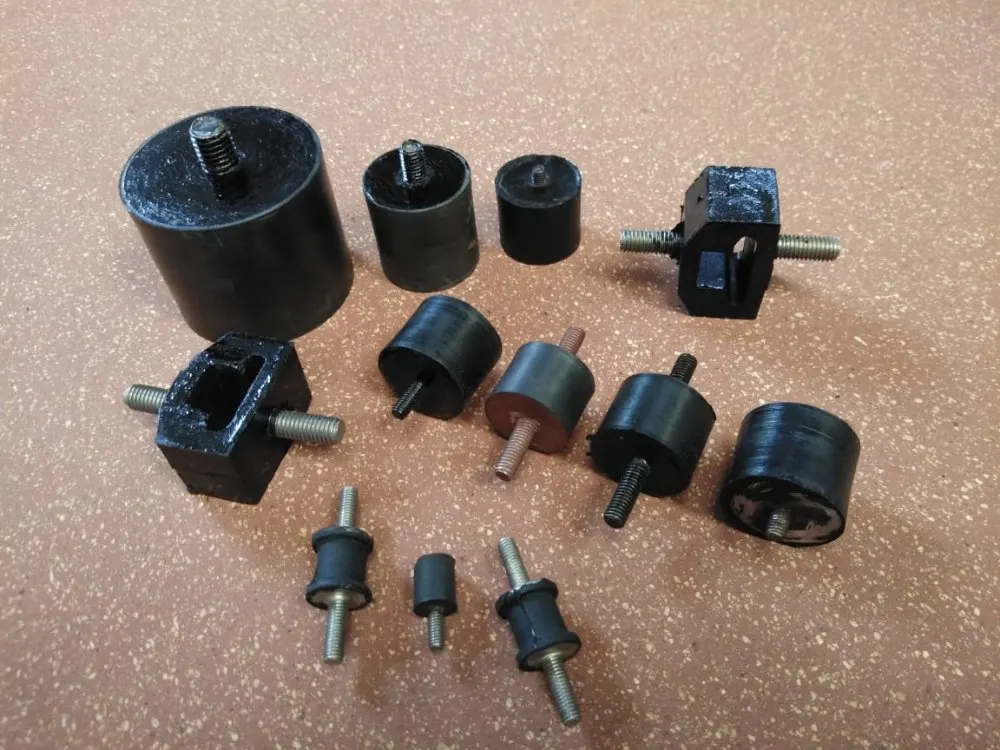

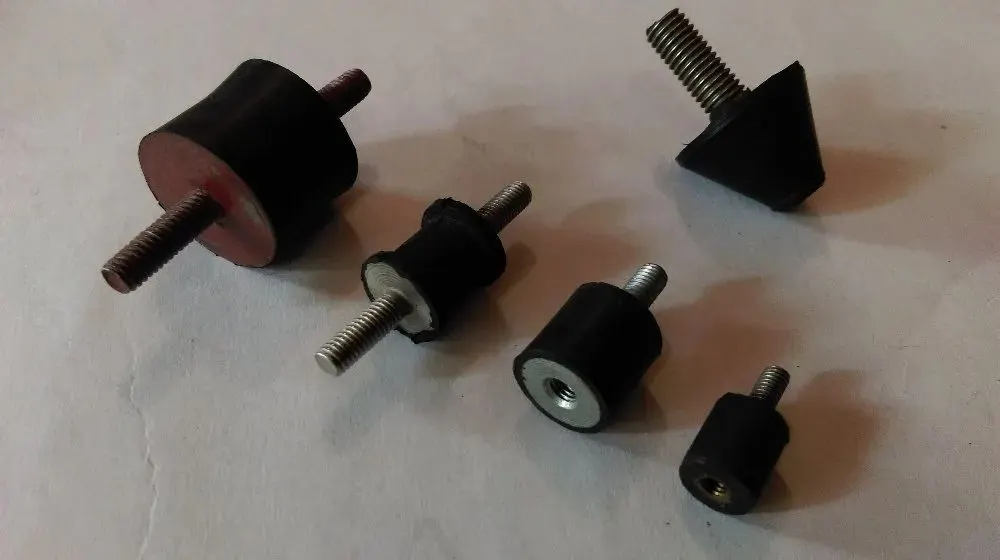

Rubber to Metal Bonded Male/ Female Isolator
₹25
per number, ex-works Nashik
Min. order
500 Number
These are Manufactured out of Synthetic Rubber having High Tensile strength with Minimum Compression Set, Good Resilience and Good Vibration Absorbing Properties. The same can also be manufactured as per Customers Requirements, Specifications and as per Application.
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Construction Type
- Enclosed
- Bonded Part Type
- Rubber To Metal
- Type
- Rubber Mount
- Rubber Material
- Natural Rubber
- Mounting Type
- Vertical
- Metal Material
- Mild Steel
- Application Type
- Industrial
- Application
- Construction, Generator, Electrical, Industrial Machinery, Compressor, Automotive, Railway, Agriculture
- Load Capacity
- Up To 50 kg
- Shape
- Round
- Hardness
- 40 - 95 Deg Shore A as per the load
- Color
- Black
- Packaging Type
- 50 nos per box
- Bonding Process
- Molded Bonded
- Size
- Dia. 8x12,12x16,20x20,25x28,28x32,35x35,40x50,60x50L,80x50L
- Height
- 50 mm
- Temperature Range
- -20 To 80 C
- Deflection
- 5 mm
- Country Of Origin
- India
- Material
- Natural/ Neoprene/ NBR PVC/ Customise
Material notes
Nitrile (NBR)
−30 °C to +110 °C
The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.
Neoprene (CR)
−35 °C to +120 °C
The balanced all-rounder. Moderate oil resistance combined with genuine weather resistance and inherent flame retardance — no other single compound covers that spread as cheaply.
Natural Rubber
−50 °C to +80 °C
Unmatched resilience, tear strength and dynamic fatigue life. Still the correct choice for shock and vibration work wherever oil is not present.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
Electrical & Switchgear
See components for this sector
Automotive & Engines
See components for this sector
General Engineering
See components for this sector
