Silicone
Sheets, Liners, Tubes & Profiles

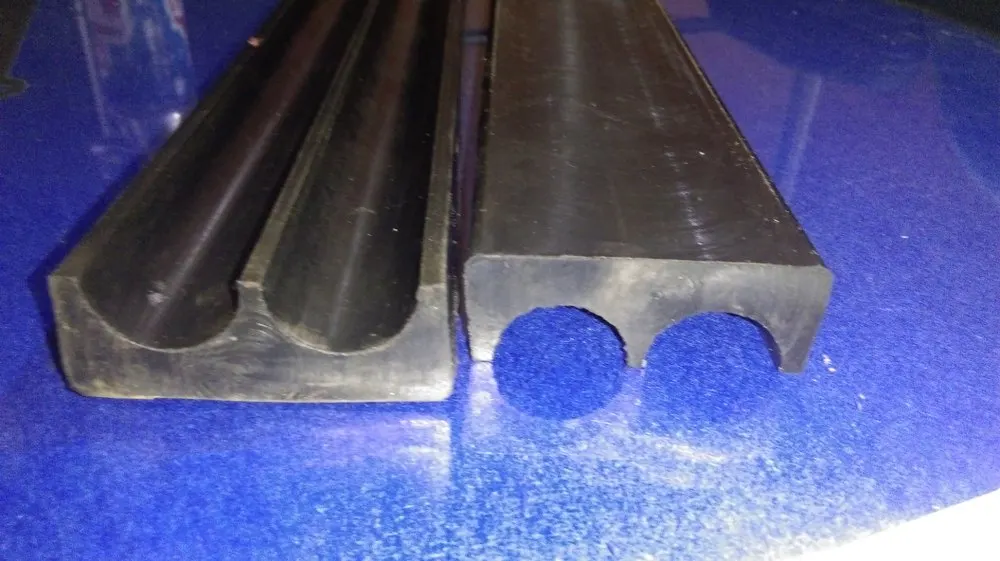

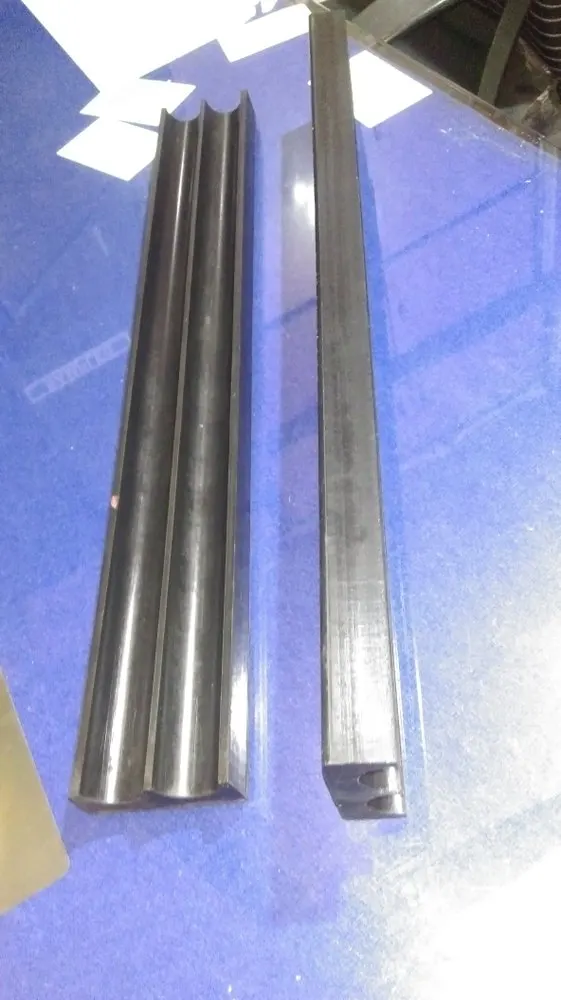

Nitrile Rubber Liners
₹1,400
per piece, ex-works Nashik
Min. order
50 Piece
These are manufactured out of Minimum Compression Set, Oil resistance and Atmospheric resistance rubber having High Tensile and abrasive resistance properties.
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Material
- Neoprene/Nitrile/Epdm Rubber
- Thickness
- 20/25/35mm
- Size
- 70Wx65Wx500L
- Color
- black
- Application
- For Rope Way
- Max Hardness
- 85/90 Shore A
- Min Temperature
- 10DegC
- Packaging Type
- 10nos
Material notes
Nitrile (NBR)
−30 °C to +110 °C
The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.
EPDM
−45 °C to +140 °C
The choice wherever water, steam, weather or ozone are involved. EPDM ages outdoors almost indefinitely and handles hot water and low-pressure steam that would destroy nitrile.
Neoprene (CR)
−35 °C to +120 °C
The balanced all-rounder. Moderate oil resistance combined with genuine weather resistance and inherent flame retardance — no other single compound covers that spread as cheaply.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
General Engineering
See components for this sector
