Natural RubberHeavy Duty Anti Vibration Mounts
- Mount Type
- Pad
- Load Capacity
- 1000 kg
- Thread Size
- M16
₹1,500per piece · MOQ 20 Piece
Anti-Vibration Mounts & Isolators
Antivibration Rubber Mounts
₹600
per piece, ex-works Nashik
Min. order
100 Piece

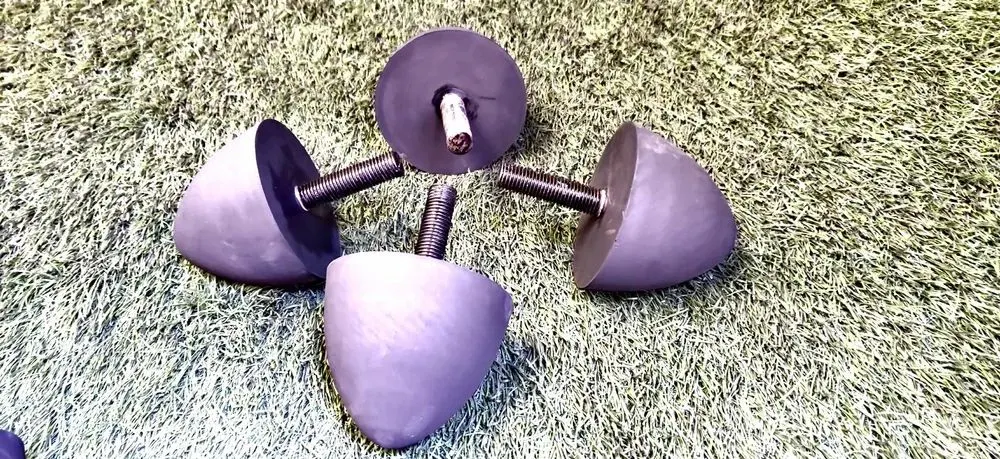

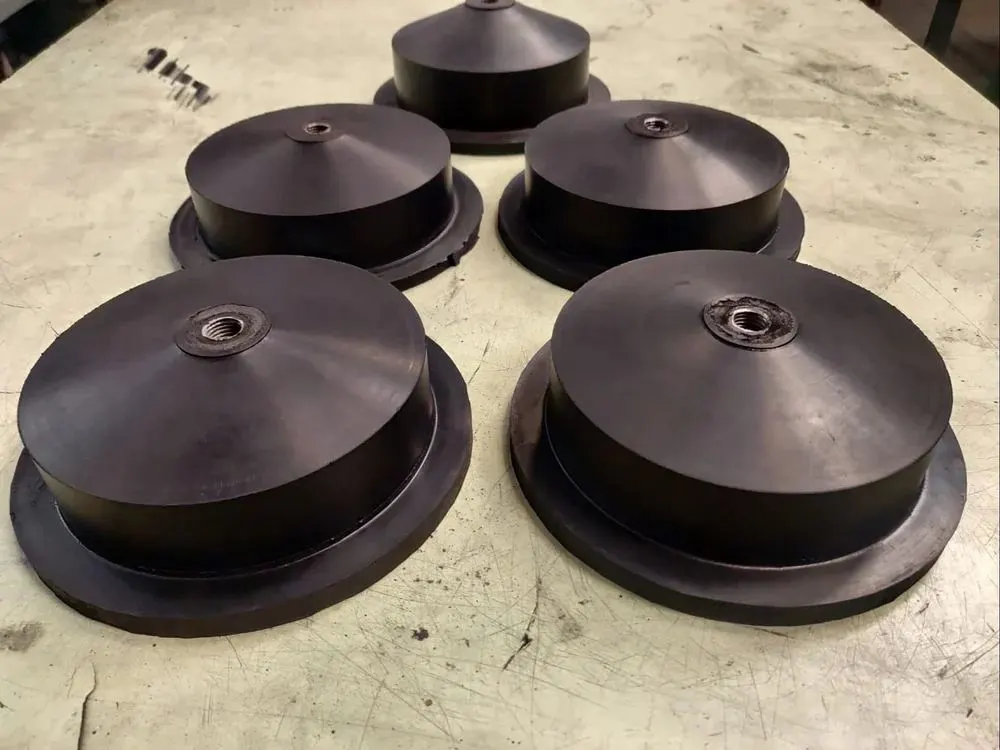

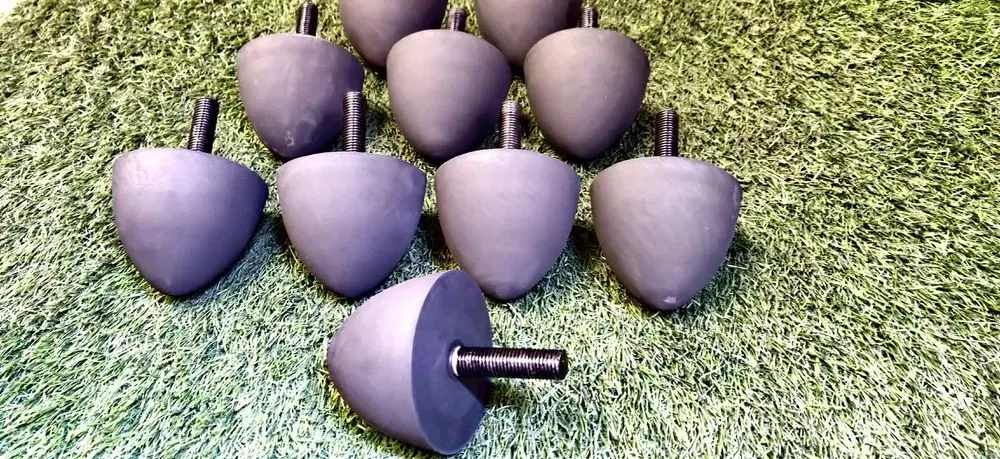

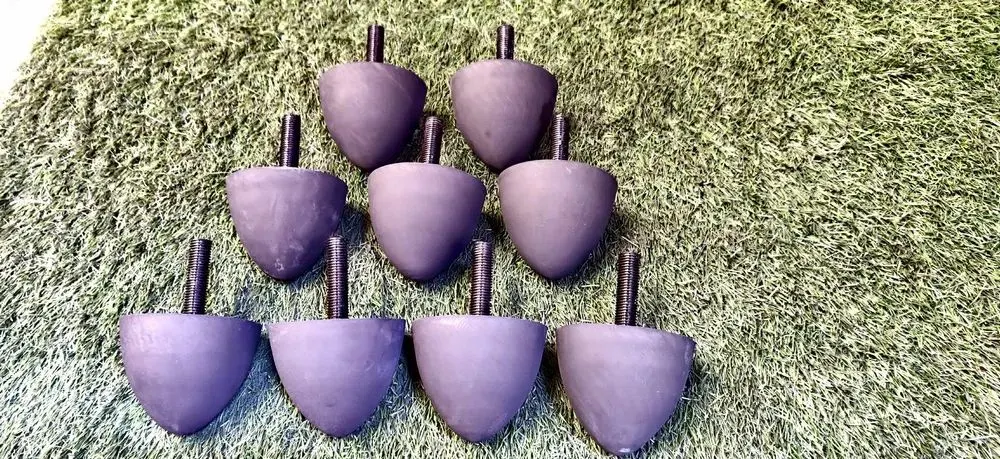

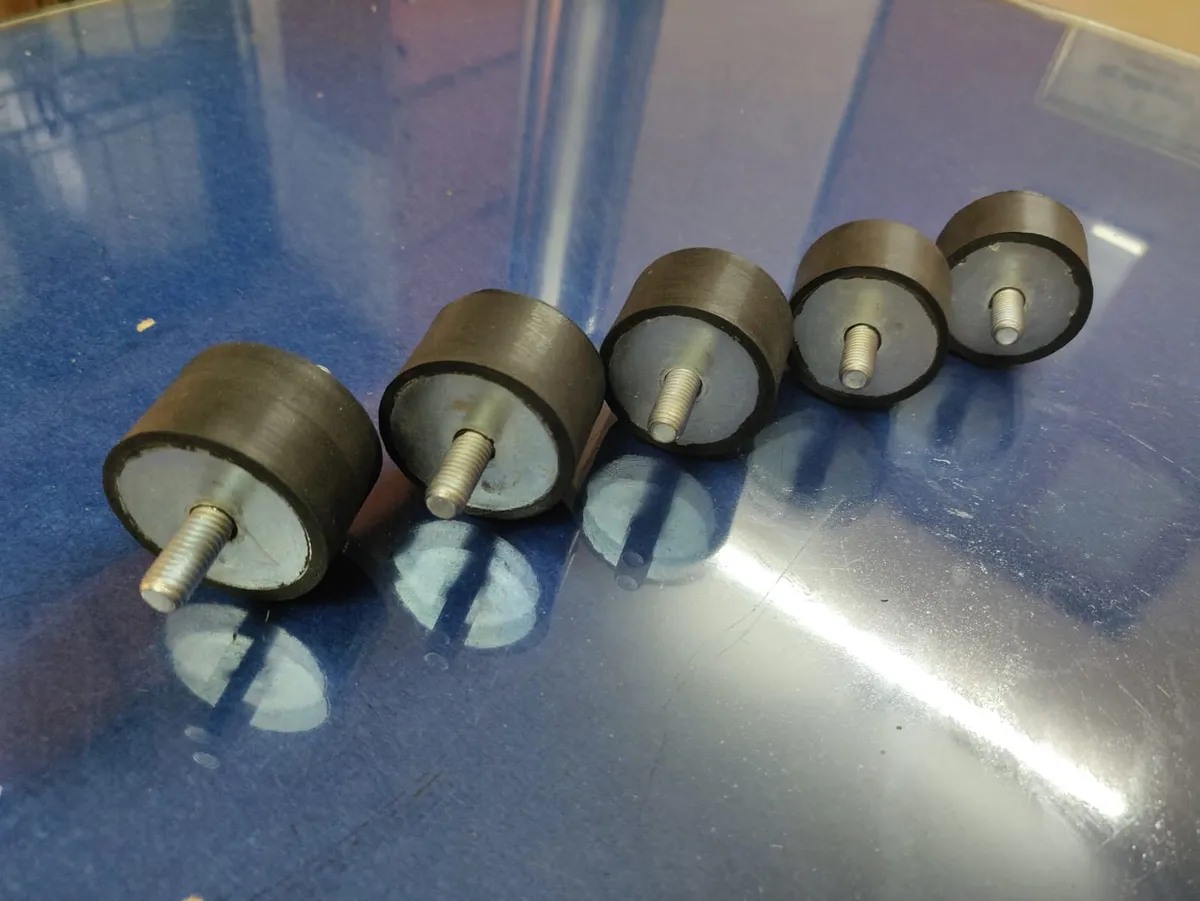

Description: Heavy-duty Black Anti-Vibration Rubber Mounts designed to absorb vibration, shock and noise while isolating machinery from unwanted movement. Manufactured from high-quality NR, NBR, Neoprene or EPDM rubber with metal inserts as required. Available in different sizes, hardness grades and load capacities as per application requirements.
Typical applications
- Industrial machinery & equipment
- Motors, pumps & compressors
- Generators and engines
- HVAC equipment
- Machine tools
- Conveyors & material-handling equipment
- Automotive and engineering applications
- Custom sizes and hardness to drawing
- Compound tuned to your media and temperature
- Dies cut in-house — fast first samples
- Despatch by road across India
Technical specification
Standard catalogue build. Every dimension below can be changed to suit your assembly.
- Mount Type
- Stud Mount
- Load Capacity
- 100 kg
- Thread Size
- M12
- Color
- Black
- Body Material
- Natural Rubber
- Material
- Rubber
- Diameter
- 100 mm
- Usage/Application
- Industrial
- Brand
- Varsha Industries
- I Deal In
- New Only
- Finishing
- Powder Coated
- Height
- 75 mm
- Pattern Type
- Zig Zag
- Application
- Compressors, CNC Machines, Motors, Pumps
- Reduces
- Noise
- Surface Finishing
- Matt Finish
- Hardness (Shore A)
- 70 Shore A
- Size
- Dia70 x 80Ht x M16 x 70L
Material notes
Nitrile (NBR)
−30 °C to +110 °C
The workhorse oil-resistant elastomer. Excellent resistance to petroleum oils, hydraulic fluids, greases and diesel, with good abrasion and compression-set behaviour at a modest cost.
EPDM
−45 °C to +140 °C
The choice wherever water, steam, weather or ozone are involved. EPDM ages outdoors almost indefinitely and handles hot water and low-pressure steam that would destroy nitrile.
Neoprene (CR)
−35 °C to +120 °C
The balanced all-rounder. Moderate oil resistance combined with genuine weather resistance and inherent flame retardance — no other single compound covers that spread as cheaply.
Natural Rubber
−50 °C to +80 °C
Unmatched resilience, tear strength and dynamic fatigue life. Still the correct choice for shock and vibration work wherever oil is not present.
Need it in a different size?
This part exists because a customer needed it. Yours can too — send the dimensions, the operating temperature and what fluid it sees.
Request a custom quoteTypical applications
This component is supplied into the sectors below. If your duty is close but not identical, the geometry usually stays and only the compound changes.
Pumps & Valves
See components for this sector
Automotive & Engines
See components for this sector
Surface Coating & Plating
See components for this sector
